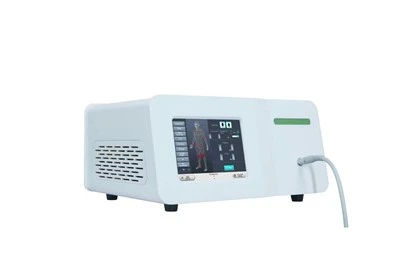

Pneumatic Cua -Cooled Shockwave Therapy Tshuab

Raws li kev lag luam tseem muaj siab -cov ntsiab lus tseem ceeb hauv pebkev kho mob lub cev kev kho mob thiab kev kho mob rov qab tshuab series, MNLT Pneumatic Cua -Cooled Shockwave Therapy Machine muab cov chaw kho mob lub cev, cov chaw kho mob kis las, orthopedics, thiab cov txiv neej txoj kev noj qab haus huv nrog tsev kho mob-qib extracorporeal shock yoj therapy (ESWT) ntawm tus nqi sib tw heev, ua rau lub sij hawm luv luv ntawm 45 hnub.

Core Technology & Engineering Innovations

1. Electronically Controlled Ballistic Shockwave Engine

Acoustic Kinetic cuam tshuam: Accelerated compressed cua propels ib lub mos txwv nyob rau hauv qhov projectile tiv thaiv lub applicator sojntsuam, generating siab -peak siab radial acoustic nthwv dej uas nkag mus tob subcutaneous cov ntaub so ntswg (txog 60 mm qhov tob).

Cellular & Vascular Neogenesis: Induces micro-kev raug mob hauv cov ntaub so ntswg fibrotic thiab ischemic, ua kom cov calcium tso tawm sai, txhawb cov ntshav microcirculation, tso cov tshuaj P, thiab txhawb nqa vascular endothelial growth factor (VEGF) synthesis.

2. High-Kev Ua Haujlwm Tus Kheej-Contained Air-Coling Architecture

Zero Liquid Leakage Risk: Tsis zoo li cov kua tshuaj ib txwm muaj- cov tshuab txias txias uas muaj kev pheej hmoo ntawm kev sib kis hauv cov dej txias lossis cov twj tso kua mis degradation, peb lub luag haujlwm hnyav - lub luag haujlwm sab hauv tshav kub dissipation fins thiab yuam- cua convection muab cov thermal tshuav nyiaj li cas thaum lub sij hawm kho mob siab tshaj plaws.

Dual Transparent Lim Purification: Nruab nrog lub nraub qaum dual -theem roj / dej cais qhov system uas lim dej ambient thiab particulates, tswj cov ntshiab, qhuav pneumatic siab thiab ntev pneumatic valve kev pab cuam lub neej.

3. Heavy-Lub luag haujlwm 2,000,000-Ib puag ncig Handpiece Assembly

Reinforced Ballistic Chamber: Precision-engineered internal bore withstands nruam siab -frequency percussion tsis bore warping lossis siab poob.

Ceev-Hloov Modular Bullet System: suav nrog ergonomic sib xyaw ua ke ciaj ntswj ua kom nrawm hloov ntawm cov mos txwv sab hauv hauv 3 feeb ib zaug txog 2 lab qhov cuam tshuam.

4. Muaj ntau yam -Transmitter Array

Standard Transmitters (1 # - 5 #): Distinct concave, ca, thiab radial geometries engineered rau lub hom phiaj cov leeg insertions, cov leeg nqaij loj, thiab cov ntsiab lus mob periosteal.

Kev Tshawb Fawb Tshwj Xeeb (D2, D3, D4, D6): High-High sib cuag lub taub hau engineered rau tsom acupoint stimulation thiab trigger point deactivation.

Dedicated Men's Health Probes (D6#, D15#, D25#): Tshwj xeeb nkhaus thiab tiaj transmitters tailored rau penile cavernous lub cev revascularization thiab mob pelvic/prostate nyem.



Clinical Indications & Protocol Guidelines

Clinical Indications

Orthopedics & Sports Medicine: Plantar fasciitis, calcific lub xub pwg tendonitis, lateral/medial epicondylitis (tennis/golfer's luj tshib), patellar tendinopathy (jumper's knee), Achilles tendinopathy, thiab myofascial trigger point.

Aesthetic Contouring & Tissue Remodeling: Kev hloov kho cov ntaub so ntswg, daim tawv nqaij elasticity zawm, thiab hauv zos cellulite / fat accumululation smoothing.

Urology & Txiv neej Health: Tsawg-kev siv zog shockwave therapy (Li-ESWT) rau vasculogenic erectile dysfunction (ED) thiab chronic pelvic pain syndrome (CPPS).

Pom zoo Clinical Protocol Breakdown

Kev kho mob qhia	Pom zoo Transmitter	Zaus & Siab	Tag nrho cov cuam tshuam / Preload	Session zaus	Target Clinical Outcome
Tennis / Golfer lub luj tshib	2 #, 3 # Radial taub hau	3 Hz / 3.0 Bar	2,000–2,500 Impacts	Txhua 5-7 Hnub	Calcification tso tawm, kho cov leeg
Plantar Fasciitis & Heel Spurs	1#, 2# Ua kom pom tseeb taub hau	3 Hz / 2.0 Bar	1,000 Impacts	Txhua 1-3 Hnub	Txo qhov mob, plantar fascia decompression
Rotator Cuff / Lub xub pwg nyom	5 #, 6 # Lub taub hau dav	6 Hz / 3.0 Bar	2,000–2,500 Impacts	Txhua 1-2 Hnub	Bursitis nyem, ntau yam - ntawm - kev rov qab los
Lumbar Region & Chronic Back	4 #, 5 # Lub taub hau sib sib zog nqus	8 Hz / 4.0 Bar	2,000–2,500 Impacts	Txhua 5-7 Hnub	Sib sib zog nqus nqaij so, spasm alleviation
Cellulite & Fat Accumulation	5 #, 6 # Lub taub hau tiaj tus	10 Hz / 4.0 Bar	2,000–2,500 Impacts	Txhua 5-7 Hnub	Microcirculation boost, tawv nqaij nruj
Vasculogenic ED raws tu qauv	D6#, D15# ED Lub taub hau	3-8 Hz / 0.5-2.0 Bar	1,500 Qhov cuam tshuam (5 Zones)	2 x / lub lis piam (3 lub lis piam)	Cavernous angiogenesis, vascular restoration

Clinical Synergy Tip: Rau cov tsev kho mob ntau yam kev qhuab qhia xa cov lus qhia dav dav - kev raug mob rov qab, sib txuas cov kev kho radial shockwave nrog pebme ntsis hyperbaric oxygen chamber systemaccelerates cellular cov ntaub so ntswg oxygenation thiab metabolic rov qab. Rau kev sib piv cov txheej txheem kho mob thiab cov ntaub ntawv tshawb fawb soj ntsuam, cov thawj coj kho mob kuj tuaj yeem sab laj nrogMNLT Laser kev kho mob kho mob blog.



Smart Operation & Clinic Workflow

Interactive Tib Neeg Lub Cev Mannequin UI: High- txhais lus kov vaj huam sib luag nta ib daim ntawv qhia kev xav tau ntawm lub cev uas npog 10 qhov sib txawv ntawm lub cev nrog ib qho -kov qhov chaw thau khoom.

Dual Treatment Algorithms (C hom & P hom):

Hom kev nplij siab (C hom): softer pressure progression thiab low impact frequencies tsim los rau cov neeg mob rhiab heev thiab thawj theem rehabilitation.

Professional hom (P hom): Siab -lub zog ballistic cuam tshuam nkhaus tsim los rau cov mob orthopedic ntev thiab sib sib zog nqus calcifications.

6 Preload Impact Cycles: Tsis siv neeg lub tswb nrov ntawm 600, 1,000, 2,000, thiab 2,500 shocks xyuas kom meej npaum li cas ua raws thiab tiv thaiv kev sib tsoo dhau - kho.

Ergonomic Shock-Dawb Handpiece: Kev kho mob- qib aluminium chim nrog kev vibration sab hauv- damping silicone tes tsho txo ​​tus neeg teb xov tooj lub dab teg qaug zog thaum lub sij hawm rov qab - rau - rov qab kho.

Technical Specifications

Technical Parameter	Engineering Specification
Khoom qauv	MNLT Pneumatic Cua -Cooled Shockwave Platform
Txoj Cai Kev Ua Haujlwm	Electronically -Controlled Ballistic Pneumatic Radial Shockwave
Txias Architecture	Ua-hauv siab- Cua txias (Compressor- sib xyaw)
Ua Haujlwm Siab Ntau Yam	0.5 Bar rau 6.0 Bar (Adjustable nyob rau hauv zoo gradations)
Ua hauj lwm zaus	1 Hz txog 21 Hz (Kev hloov kho tsis tu ncua; 1-10 Hz rau ED hom)
System tso zis zog	282 VAJ
Input Power Supply	AC 220V-230V 50/60Hz / AC 110V 50/60Hz (Universal export npaj)
Projectile Bullet Lifespan	Ntau dua los yog sib npaug rau 2,000,000 Qhov Teeb Meem (Tooj - pab hloov chaw nrawm)
Transmitter Configurations	5 Standard Heads (1#–5#) + 4 Precision Heads (D2, D3, D4, D6) + D15#, D25#
Anatomical Preset Hom	10 Lub Cev Lub Cev (tes / dab teg, lub luj tshib, pubic, hauv caug, ko taw, xub pwg, nraub qaum, duav, rog, ED)
Hom kev ua haujlwm	C hom (hom kev nplij siab) & P hom (kev kho mob hom)
Preload Impact Setting	6 Preloaded Dosing Options (600 / 1,000 / 2,000 / 2,500 cuam tshuam nws pib- nres)
Cua Lim System	Tsheb Dual Transparent Roj/Dej Separators nrog ceev -Drain Valves
Chassis Dimensions & Portability	Compact benchtop kho mob chassis nrog integrated handpiece cradle

---



Factory Manufacturing & OEM / ODM Kev them nyiaj yug

Tsim thiab tsim los ntawm Shandong Moonlight Electronics Tech Co., Ltd.

Zero Consumable Nqi & Qhib Architecture: Ua haujlwm nrog cov dej txheem -raws li acoustic coupling gel. Tsis muaj daim npav tshwj xeeb, RFID cim npe, lossis txhaj tshuaj - txwv kev them nyiaj software.

Ntiaj teb no OEM / ODM Customization: Kev cai xim casing, bespoke brand silk-kev tshuaj ntsuam, kev cai software pib cov ntxaij vab tshaus, thiab ntau- hom lus software txhais lus muaj nrog tsawg kawg nkaus kom muaj nuj nqis (MOQ).

Chaw tsim tshuaj paus Backing & Warranty Protection:

2-Xyoo Ua tiav Console Warrantynpog sab hauv cua compressor, motherboard, thiab fais fab mov.

48-teev ceev Spare Parts Dispatch: Kev xa khoom thoob ntiaj teb ntawm cov mos txwv seem, O-rings, thiab cov lus qhia ntawm tus neeg thov kev pab los ntawm cov chaw muab khoom txawv teb chaws.

Lifetime Clinical & Engineering Support: Nkag mus ncaj qha rau cov laus biomechanical engineers thiab kev qhia txog kev kho mob video.

Cov Lus Nug Nquag & Nug

Cov lus nug nquag nug (FAQ)

Q1: Dab tsi yog qhov kev kho mob tseem ceeb ntawm pneumatic ballistic shockwave tshaj electromagnetic shockwave?

A: Pneumatic ballistic systems siv cov cua compressed rau lub cev kom nrawm dua qhov projectile, xa cov hluav taws xob sib sib zog nqus radial acoustic zog (txog 6.0 Bar) thiab siab dua txhua yam shear stress piv rau cov khoom siv hluav taws xob. Qhov no ua rau pneumatic ESWT muaj txiaj ntsig zoo dua rau kev ua kom tawv ncauj calcifications, loosening ntom fibrotic caws pliav, thiab kho cov kab mob sib sib zog nqus musculoskeletal.

Q2: Nws nyuaj npaum li cas los hloov cov mos txwv sab hauv tom qab 2 lab cuam tshuam?

A: Kev hloov pauv niaj hnub siv sijhawm li 3 feeb. Txhua lub tshuab suav nrog kev sib koom ua ke ua ke. Tus neeg teb xov tooj tsuas yog unscrews lub tes tsho pem hauv ntej applicator, swb tawm cov mos txwv sab hauv, ntxig rau qhov hloov projectile, thiab nruj lub tes tsho rov qab rau hauv qhov chaw- tsis muaj kev cuam tshuam los yog lub Hoobkas rov qab.

Q3: Puas yog lub cuab yeej xav tau lub tshuab cua sab nraud lossis dej puv?

A: Tsis yog. Lub kaw lus muaj cov roj sib xyaw ua ke, hluav taws xob tswj hluav taws xob-pneumatic compressor pub dawb thiab nws tus kheej-muaj cov yuam sij- cua txias. Nws ua haujlwm tam sim ntawd thaum ntsaws rau hauv cov qauv AC phab ntsa fais fab, tshem tawm cov cua tso tsheb hlau luam sab nraud, cov dej ntim dej, thiab cov dej xau.

Q4: Txoj Cai ED tshwj xeeb muaj txiaj ntsig zoo li cas rau txiv neej cov chaw kho mob?

A: Chav tsev tuaj ua ntej- programmed nrog ED interface thiab tshwj xeeb D6#, D15#, thiab D25# transmitters. Kev xa tawm tsawg- siv zog shockwaves ntawm 0.5–2.0 Bar raws li 5 thaj chaw anatomical ntawm lub penile ncej thiab crura txhawb microvascular neovascularization, rov ua kom cov ntshav ntws zoo nrog xoom tshuaj dependence lossis phais downtime.



Thov Factory Direct Quotation & Clinic Solutions

Txhim kho koj lub tsev kho mob kho mob, chaw ua kis las kis las, lossis kev xyaum ua kom zoo nkauj nrog peb lub siab - rov qab pneumatic huab cua- txias shockwave therapy workstation:

Factory Direct Nqe: Tau txais FOB / DDP tus nqi lag luam wholesale hauv 2 teev.

Live Video Demonstration: Txuas ncaj qha nrog peb cov kws kho mob cov cuab yeej tshwj xeeb rau ib txhais tes- ntawm kev ua yeeb yam nyob.

OEM / ODM Kev Sib Tham: Nug txog tus kheej li casing branding, kev cai xim, thiab kev cai hauv tsev kho mob UI kev koom ua ke.

👉 Hu rau peb B2B Technical Engineering Teamthov peb cov ntaub ntawv qhia txog shockwave soj ntsuam, spare qhov chaw catalog, thiab distributor price lists.
